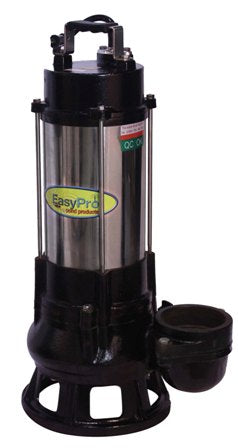

EasyPro 14500 GPH 230 Volt TB High Head Series Pump - TB14500

EasyPro 14500 GPH 230 Volt TB High Head Series Pump - TB14500

by Easy Pro
SKU TB14500
Save 8% Save 8%
$1,797.69
$1,797.69 - $1,797.69
$1,797.69
$1,662.86
$1,662.86 - $1,662.86
$1,662.86
Financing available at checkout

Questions? Call +1 862-362-1444 or email support@aquascapeeco.com.

EasyPro 14500 GPH 230 Volt TB High Head Series Pump - TB14500 includes EasyPro 14500 GPH 230 Volt TB High Head Series Pump - TB14500 (TB14500), Model / SKU: TB14500, Flow Rate: 14500 GPH, and Voltage: 230v. EasyPro Title: TB14500 - 14500 GPH 230v Stainless Steel TM Series™ High Head Pump For Large Water Features. Model TB14500.

Shipping Details

Aquascape Eco offers multiple shipping options at checkout. Eligible orders over $200 may qualify for economy shipping in the contiguous United States. Pond liners, oversized items, freight items, supplier-restricted items, and orders requiring special handling may be excluded. Final shipping costs, available methods, taxes, and order totals are shown before purchase at checkout.

This EasyPro SMF system is listed by the manufacturer as motor freight only. If added freight confirmation, liftgate service, terminal pickup, or special delivery handling is needed, Aquascape Eco will contact the customer before shipment.

Read more about Aquascape Eco shipping policy.

EasyPro source details

TB14500 product details and downloadable content

Product Details

Max Flow Rate 14500 gph
Power Cord Length 20'
Horsepower 3hp
Voltage 230v
Amps 14.5
Maximum Head 72'
Outlet 3"
Warranty 2 years
Weight 74
In Horsepower 3 HP
UPC 812506013343

Description

  • 3″ outlets with 20′ power cords and thermal overload protection
  • Top quality Japanese double mechanical seals – over 100,000 hour life expectancy
  • 230 volt (1 hp available in 230v or 115v)
  • Designed for use with higher head pressure
  • Applications: A minimum of 20' head pressure required for TB12000 and TB14500, use ball valve to create back pressure if system has less than 20' head pressure
EasyPro product guidance

Check fit before ordering

Confirm size, compatibility, site conditions, delivery access, and install requirements before ordering.

Sizing and specs to confirm

Use these points to catch sizing, compatibility, and site-fit issues before purchase.

Product family Pond pump
Model / SKU TB14500
Best fit Pump replacements or upgrades sized by real head height, not zero-head flow.
Confirm before ordering GPH at head height, pipe size, intake protection, check valve, power rating, and cleanout access.
Tony's check For larger builds, submit photos and measurements before ordering freight or special-order equipment.

Before ordering

  • Target GPH is checked at actual head height.
  • Pipe size supports the expected flow.
  • Intake protection, check valve, and cleanout access are planned.

Need a second look?

Send photos, gallons, fish load, flow, head height, and timeline. Tony can help check fit before you order.

Submit project details
