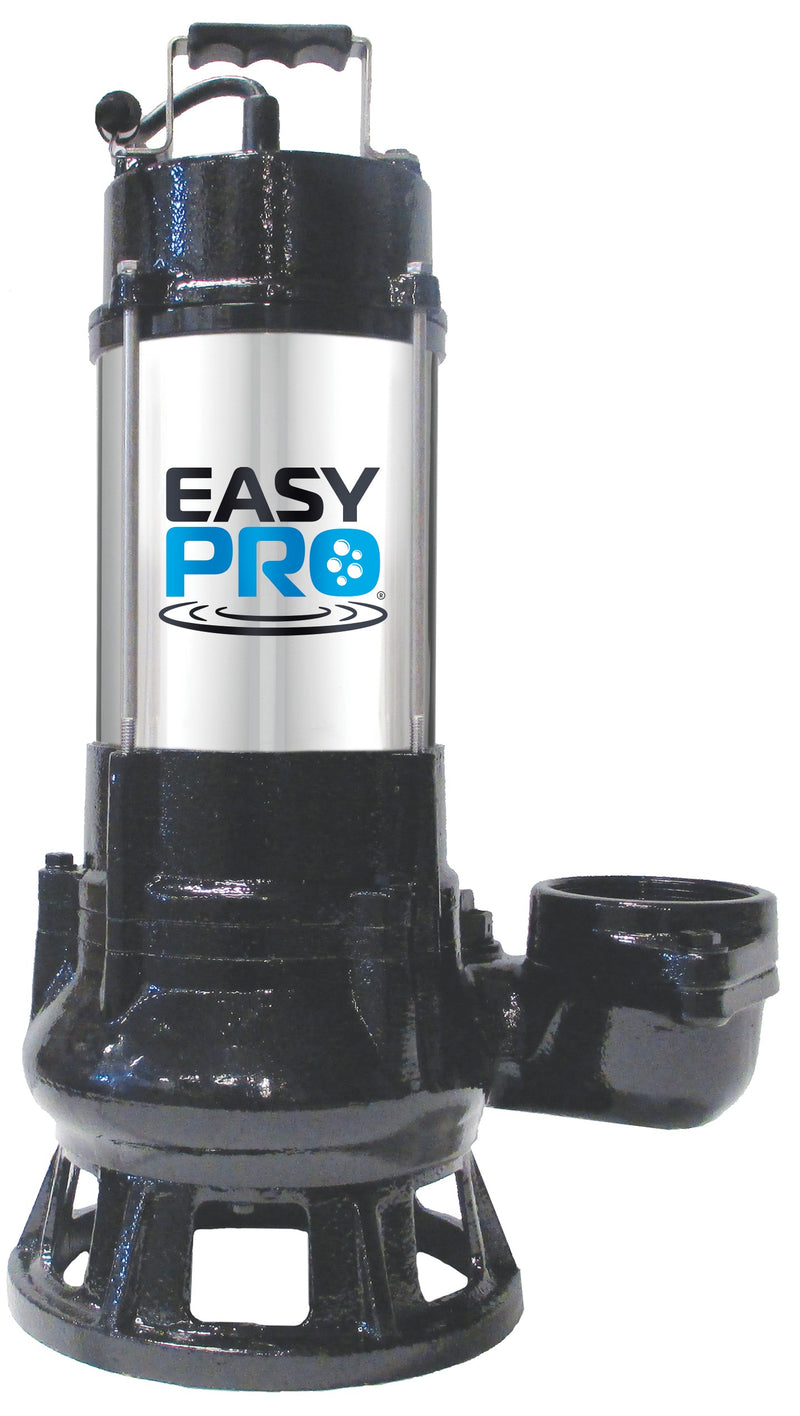

EasyPro 12000 GPH 230 Volt TB High Head Series Pump - TB12000

EasyPro 12000 GPH 230 Volt TB High Head Series Pump - TB12000

by EasyPro
SKU TB12000
Save 7% Save 7%
$1,628.29
$1,628.29 - $1,628.29
$1,628.29
$1,506.17
$1,506.17 - $1,506.17
$1,506.17
Financing available at checkout

PRODUCT DESCRIPTION

The EasyPro TB12000 is a 230V submersible pump for large waterfalls and water features with higher head pressure. It has a listed maximum flow of 12,000 GPH; use the manufacturer pump curve to find the flow your installation will deliver.

Check the head pressure first

This model requires at least 20 feet of head pressure. EasyPro directs installers to add back pressure with a ball valve when system head is lower. Confirm the operating point before choosing this pump for a low-head waterfall.

Before you order

  • Confirm a suitable 230V electrical supply. This is not the 115V model.
  • Check the 3-inch outlet, 20-foot power cord, pipe size, fittings, and total head against the data sheet.
  • Plan a fully submerged installation and maintenance access. Follow the operating manual for electrical protection and installation.

Find EasyPro service parts; match any replacement to the exact pump model.

Ask Tony to check your project details before ordering if sizing or compatibility is unclear.

Shipping Details

Aquascape Eco offers multiple shipping options at checkout. Eligible orders over $200 may qualify for economy shipping in the contiguous United States. Pond liners, oversized items, freight items, supplier-restricted items, and orders requiring special handling may be excluded. Standard parcel shipping charges and available methods are shown at checkout. Freight may apply — we’ll contact you to confirm any additional cost for your approval before shipment.

Read more about Aquascape Eco shipping policy.

EasyPro source details

TB12000: specifications and buying guidance

Use the data sheet and pump curve to match required flow to total head. Maximum flow and maximum head are separate limits, not a single operating point.

Product Details

Model / SKU TB12000
Pump type Submersible, high-head TB Series
Listed maximum flow 12,000 GPH; installed flow depends on total head
Minimum required head pressure 20 feet
Maximum head 60 feet
Voltage 230V
Horsepower 2 HP
Listed current draw 9.7 amps
Outlet 3 inches
Power cord 20 feet
Manufacturer warranty 2-year limited; see manual
UPC / barcode 812506013350

Description

  • Stainless-steel motor casing with a submersible design.
  • Thermal overload protection.
  • Three-inch discharge for high-volume water-feature installations.
  • Keep the pump submerged during operation; consult the manual before installation or service.
EasyPro product guidance Authorized EasyPro Dealer

Check fit before ordering

Confirm size, compatibility, site conditions, delivery access, and install requirements before ordering.

Sizing and specs to confirm

Use these points to catch sizing, compatibility, and site-fit issues before purchase.

Product family Pond pump
Model / SKU TB12000
Best fit Pump replacements or upgrades sized by real head height, not zero-head flow.
Confirm before ordering GPH at head height, pipe size, intake protection, check valve, power rating, and cleanout access.
Tony's check For larger builds, submit photos and measurements before ordering freight or special-order equipment.

Before ordering

  • Target GPH is checked at actual head height.
  • Pipe size supports the expected flow.
  • Intake protection, check valve, and cleanout access are planned.

Need a second look?

Send photos, gallons, fish load, flow, head height, and timeline. Tony can help check fit before you order.
