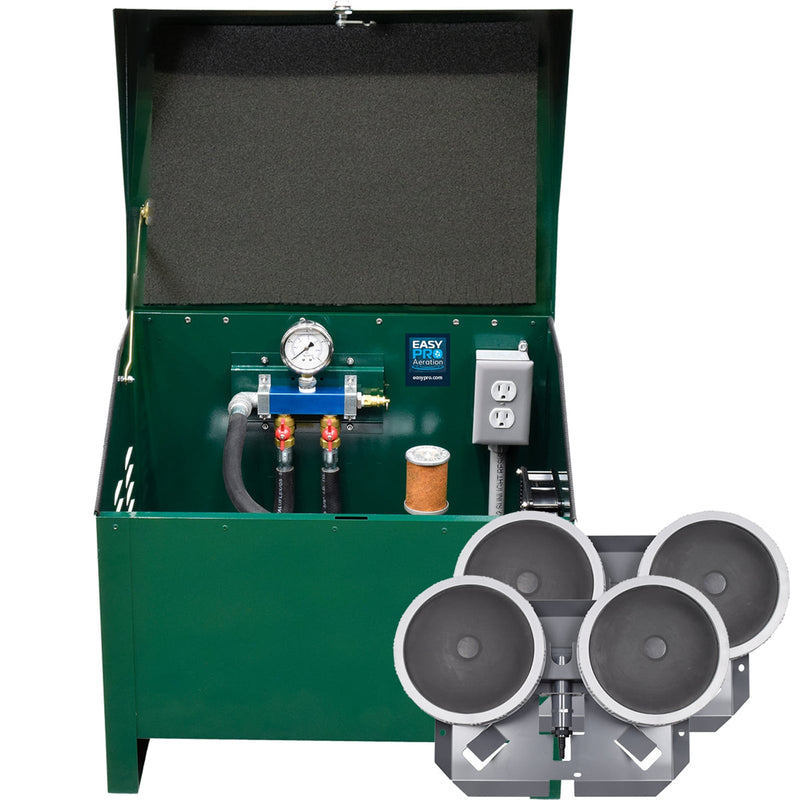

PA50AD Sentinel Deluxe Aeration System – Complete PA50A system with cabinet product image

PA50AD Sentinel Deluxe Aeration System – Complete PA50A system with cabinet

by Easy Pro
SKU PA50AD
Save 10% Save 10%
$2,698.99
$2,698.99 - $2,698.99
$2,698.99
$2,429.09
$2,429.09 - $2,429.09
$2,429.09
Financing available at checkout

Questions? Call +1 862-362-1444 or email support@aquascapeeco.com.

Sentinel Deluxe Aeration System for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rotary Vane RV33 compressor, 4.5 cfm, 2.3 amps, aerates up to 18′ deep. PA50AD kit includes compressor, two valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes two QS2 Quick Sink air diffusers and fittings for connections. Kit does not include tubing, making it an ideal solution where custom tubing lengths can be purchased as needed. Connections are set up for 1/2″ ID tubing.

Shipping Details

Aquascape Eco offers multiple shipping options at checkout. Eligible orders over $200 may qualify for economy shipping in the contiguous United States. Pond liners, oversized items, freight items, supplier-restricted items, and orders requiring special handling may be excluded. Final shipping costs, available methods, taxes, and order totals are shown before purchase at checkout.

This EasyPro SMF system is listed by the manufacturer as motor freight only. If added freight confirmation, liftgate service, terminal pickup, or special delivery handling is needed, Aquascape Eco will contact the customer before shipment.

Read more about Aquascape Eco shipping policy.

EasyPro source details

PA50AD product details and downloadable content

Product Details

Tubing None Included
Horsepower 1/4 HP
Voltage 115v (add 2 behind part # for 230v)
Amps 5.0/2.5 amps
Maximum Air Flow 4.5 cfm
Maximum Depth 18'
Weight 109
In Aeration Acres Up to 2 acres

Downloadable Content

No manufacturer downloads are currently listed for this item.

Final shipping service, delivery access, taxes, and order totals are shown before purchase or confirmed by Aquascape Eco support. Oversized, freight, supplier-restricted, and special-handling products may be excluded from generic free/economy shipping.

Need help checking fit? Contact Aquascape Eco at support@aquascapeeco.com or +1 862-362-1444.

Description

  • 1/4 hp Stratus RV33 Rotary Vane compressor
  • Two valve manifold with pressure relief
  • Valved outlet with heat reducing hose and 1/2″ connections
  • Two QS2 Quick Sink self weighted dual head air diffusers
  • Kit does not include tubing, order 1/2″ tubing (weighted or unweighted) as needed
  • Approximately 2.2 cfm of air flow per diffuser
  • Typical operation cost of $1.31 per 24 hours at .09¢ per kWh, actual cost may vary
EasyPro product guidance

Check fit before ordering

Confirm size, compatibility, site conditions, delivery access, and install requirements before ordering.

Sizing and specs to confirm

Use these points to catch sizing, compatibility, and site-fit issues before purchase.

Product family Pond or lake aeration
Model / SKU PA50AD
Best fit Ponds or lakes needing oxygen, circulation, destratification, or fish support.
Confirm before ordering Acreage, max depth, diffuser count, airline length, compressor location, power, and winter plan.
Tony's check For larger builds, submit photos and measurements before ordering freight or special-order equipment.

Before ordering

  • Depth, acreage, diffuser placement, and airline run are known.
  • Compressor location is ventilated, dry, and serviceable.
  • Winter operation and fish safety are considered.

Need a second look?

Send photos, gallons, fish load, flow, head height, and timeline. Tony can help check fit before you order.
