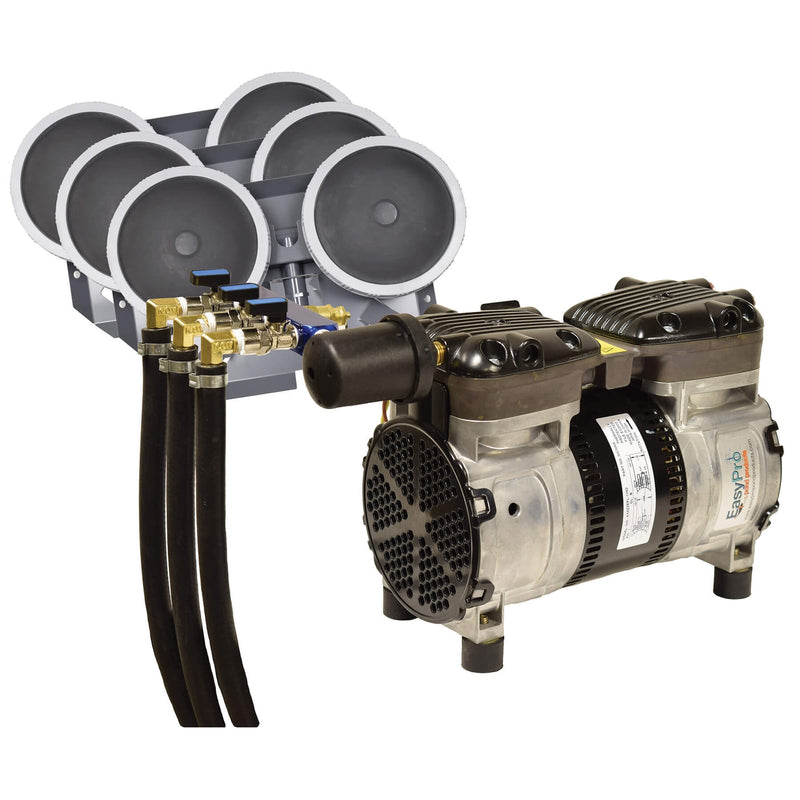

PA66A Rocking Piston Pond Aeration System – 1/2 HP Kit with NO Tubing product image

PA66A Rocking Piston Pond Aeration System – 1/2 HP Kit with NO Tubing

by Easy Pro
SKU PA66A
Save 10% Save 10%
$1,629.99
$1,629.99 - $1,629.99
$1,629.99
$1,466.99
$1,466.99 - $1,466.99
$1,466.99
Financing available at checkout

Questions? Call +1 862-362-1444 or email support@aquascapeeco.com.

Aeration system for ponds up to three acres depending on shape and depth of pond. 1/2 hp Rocking Piston SRC50 compressor, 4.5 cfm, 3.6 amps, aerates up to 50′ deep. The PA66A kit also includes three QS2 Quick Sink air diffusers, three valved outlet assembly with pressure relief valve, fittings and clamps. Kit does not include tubing, making it an ideal solution where custom tubing lengths can be purchased as needed. Connections are set up for 3/8″ ID tubing.

Shipping Details

Aquascape Eco offers multiple shipping options at checkout. Eligible orders over $200 may qualify for economy shipping in the contiguous United States. Pond liners, oversized items, freight items, supplier-restricted items, and orders requiring special handling may be excluded. Final shipping costs, available methods, taxes, and order totals are shown before purchase at checkout.

This EasyPro SMF system is listed by the manufacturer as motor freight only. If added freight confirmation, liftgate service, terminal pickup, or special delivery handling is needed, Aquascape Eco will contact the customer before shipment.

Read more about Aquascape Eco shipping policy.

EasyPro source details

PA66A product details and downloadable content

Product Details

Tubing None Included
Horsepower 1/2 HP
Voltage 115v (add 2 behind part # for 230v)
Amps 3.6/1.8 amps (at 10' operating depth)
Maximum Air Flow 4.5 cfm
Maximum Depth 50'
Weight 63
In Aeration Acres Up to 3 acres
UPC 812506019284

Downloadable Content

No manufacturer downloads are currently listed for this item.

Final shipping service, delivery access, taxes, and order totals are shown before purchase or confirmed by Aquascape Eco support. Oversized, freight, supplier-restricted, and special-handling products may be excluded from generic free/economy shipping.

Need help checking fit? Contact Aquascape Eco at support@aquascapeeco.com or +1 862-362-1444.

Description

  • 1/2 hp Stratus SRC50 Gen 2 compressor with two year warranty
  • Three valve manifold with pressure relief
  • Valved outlet with heat reducing hose and 3/8″ connections
  • Three QS2 Quick Sink self weighted dual head air diffusers
  • Kit does not include tubing, order 3/8″ tubing (weighted or unweighted) as needed
  • Approximately 1.5 cfm of air flow per diffuser
  • Typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary
  • PA66A requires weather protection for the compressor
EasyPro product guidance

Check fit before ordering

Confirm size, compatibility, site conditions, delivery access, and install requirements before ordering.

Sizing and specs to confirm

Use these points to catch sizing, compatibility, and site-fit issues before purchase.

Product family Pond or lake aeration
Model / SKU PA66A
Best fit Ponds or lakes needing oxygen, circulation, destratification, or fish support.
Confirm before ordering Acreage, max depth, diffuser count, airline length, compressor location, power, and winter plan.
Tony's check For larger builds, submit photos and measurements before ordering freight or special-order equipment.

Before ordering

  • Depth, acreage, diffuser placement, and airline run are known.
  • Compressor location is ventilated, dry, and serviceable.
  • Winter operation and fish safety are considered.
