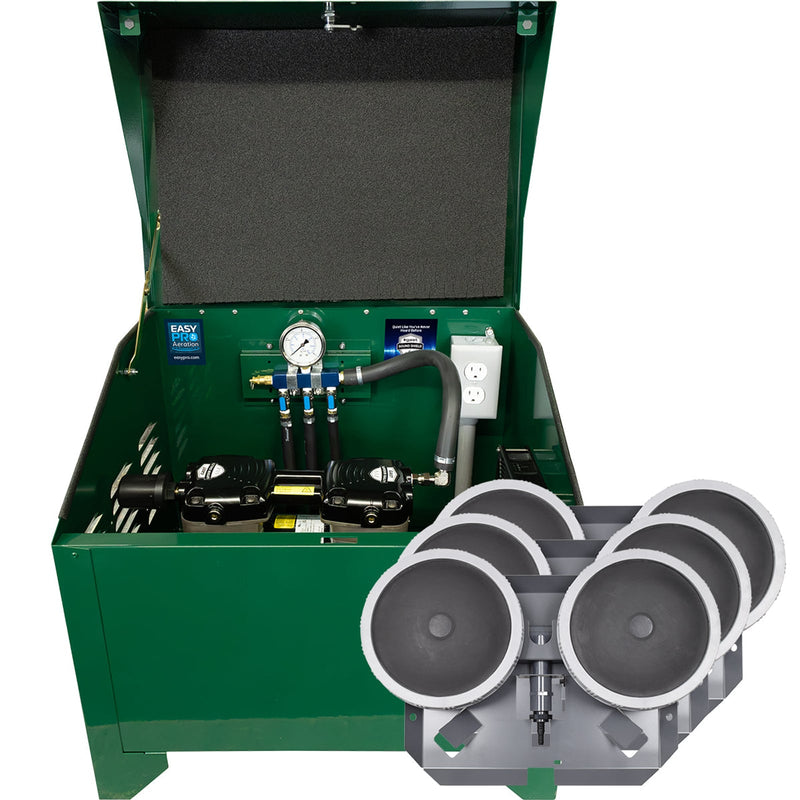

PA83AD Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield™, Deluxe 22" Cabinet and Three QS2 Diffusers product image

PA83AD Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield™, Deluxe 22" Cabinet and Three QS2 Diffusers

by Easy Pro
SKU PA83AD
Save 10% Save 10%
$3,102.99
$3,102.99 - $3,102.99
$3,102.99
$2,792.69
$2,792.69 - $2,792.69
$2,792.69
Financing available at checkout

Questions? Call +1 862-362-1444 or email support@aquascapeeco.com.

Sentinel Deluxe Aeration Systems are designed for convenience, reliability and QUIET! Many pre-installed features allow for fast and easy installation. Simply set the cabinet in desired location, install the air diffusers and connect the tubing! THE INDUSTRY'S QUIETEST! Sentinel Deluxe Aeration Systems contain EasyPro's best selling Stratus™ SRC Series “Gen 2” Rocking Piston Compressors with revolutionary Sound Shield™ technology - the quietest compressors of their class in the industry! These compressors are specifically designed for the demanding job of 24 hour operation. The oil-less design makes them ideal for lake and pond aeration systems. Stratus™ SRC Series Compressors and Sound Shield™ are assembled in the USA. Ready to HEAR it for yourself? https://youtu.be/EetgBpAY_BY

Shipping Details

Aquascape Eco offers multiple shipping options at checkout. Eligible orders over $200 may qualify for economy shipping in the contiguous United States. Pond liners, oversized items, freight items, supplier-restricted items, and orders requiring special handling may be excluded. Final shipping costs, available methods, taxes, and order totals are shown before purchase at checkout.

This EasyPro SMF system is listed by the manufacturer as motor freight only. If added freight confirmation, liftgate service, terminal pickup, or special delivery handling is needed, Aquascape Eco will contact the customer before shipment.

Read more about Aquascape Eco shipping policy.

EasyPro source details

PA83AD product details and downloadable content

Product Details

Tubing None Included
Horsepower 3/4 HP
Voltage 115v (add 2 behind part # for 230v)
Amps 4.5/2.3 amps (at 10' operating depth)
Maximum Air Flow 6.5 cfm
Maximum Depth 50'
Weight 103 lbs.
In Aeration Acres Up to 3 acres
UPC 812506019321

Description

  • SRC34SS Stratus™ SRC 3/4 hp Air Compressor with Sound Shield™ pre-installed
  • SC22 Deluxe 22″ Locking Cabinet – with noise reducing foam pre-installed
  • Cabinet hardware for either post mounted OR ground mounted cabinet placement!
  • Valved outlet assembly pre-installed
  • Pressure gauge pre-installed
  • Pressure relief valve pre-installed
  • Cooling fan pre-installed
  • Electrical box/outlet pre-installed and ready for your incoming power line
  • Heat reducing hose and 3/8″ connections
  • Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
  • Purchase tubing separately
EasyPro product guidance

Check fit before ordering

Confirm size, compatibility, site conditions, delivery access, and install requirements before ordering.

Sizing and specs to confirm

Use these points to catch sizing, compatibility, and site-fit issues before purchase.

Product family Pond or lake aeration
Model / SKU PA83AD
Best fit Ponds or lakes needing oxygen, circulation, destratification, or fish support.
Confirm before ordering Acreage, max depth, diffuser count, airline length, compressor location, power, and winter plan.
Tony's check For larger builds, submit photos and measurements before ordering freight or special-order equipment.

Before ordering

  • Depth, acreage, diffuser placement, and airline run are known.
  • Compressor location is ventilated, dry, and serviceable.
  • Winter operation and fish safety are considered.

Need a second look?

Send photos, gallons, fish load, flow, head height, and timeline. Tony can help check fit before you order.
