AF5.1H Kasco® 5 HP Surface Aerator – 230v

AF5.1H Kasco® 5 HP Surface Aerator – 230v

by Kasco
SKU AF5.1H
$6,562.00 - $6,562.00
$6,562.00
$6,562.00 - $6,562.00
$6,562.00
Financing available at checkout

PRODUCT DESCRIPTION

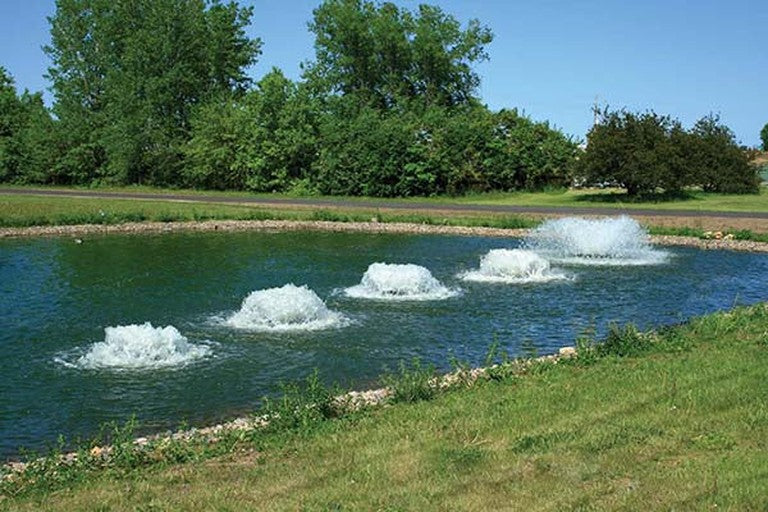

Kasco Surface Aerators are self-contained units that push high volumes of water into the air to increase water health and mixing through aeration.

Features

  • Delivers up to 3.0 lbs of oxygen per horsepower per hour
  • Breaks up stratification, helps eliminate odor, and discourages algae growth
  • Proven for continuous, supplemental, or emergency use
  • 1/2, 3/4, and 1 HP sizes can be moved and installed by one person
  • Power cords available up to 500 ft with optional flex sleeve protection
  • ETL Listed to UL and CSA safety standards

Specifications

  • Horsepower: 5 HP
  • Voltage: 230V
  • Model / SKU: AF5.1H
  • Brand: Kasco Marine
  • Oxygen Transfer: Up to 3.0 lbs O2 per HP per hour
  • Minimum Operating Depth: 17.5 to 26 inches (varies by model)

Warranty

3 years manufacturer warranty.

What’s Included

  • Motor unit
  • Power cord
  • Float and mounting hardware
  • Optional bottom screen and hardware
  • Control panel (optional for single phase; included for most three phase)
Shipping Details

Aquascape Eco offers multiple shipping options at checkout. Eligible orders over $200 may qualify for economy shipping in the contiguous United States. Pond liners, oversized items, freight items, supplier-restricted items, and orders requiring special handling may be excluded. Final shipping costs, available methods, taxes, and order totals are shown before purchase at checkout.

Large, heavy, freight, supplier-restricted, or special-order products may require delivery access confirmation before shipment.

Read more about Aquascape Eco shipping policy.

Product details

AF5.1H specs and product details

Product Details

60Hz Models 5.1AF
Size (HP) 5
Cord Length (ft.) 100, 150, 200, 250, 300, 400
Phase 1
Voltage 208-240
Amps 18
Optional Control Panel C-230
Minimum Depth (in.) 26
Brand Kasco
SKU / Model AF5.1H

Important Details

Aquascape Eco buying guidance

Check fit before ordering

Confirm size, compatibility, site conditions, delivery access, and install requirements before ordering.

Sizing and specs to confirm

Use these points to catch sizing, compatibility, and site-fit issues before purchase.

Product family Pond or lake aeration
Model / SKU AF5.1H
Best fit Ponds or lakes needing oxygen, circulation, destratification, or fish support.
Confirm before ordering Acreage, max depth, diffuser count, airline length, compressor location, power, and winter plan.
Tony's check For larger builds, submit photos and measurements before ordering freight or special-order equipment.

Before ordering

  • Depth, acreage, diffuser placement, and airline run are known.
  • Compressor location is ventilated, dry, and serviceable.
  • Winter operation and fish safety are considered.
