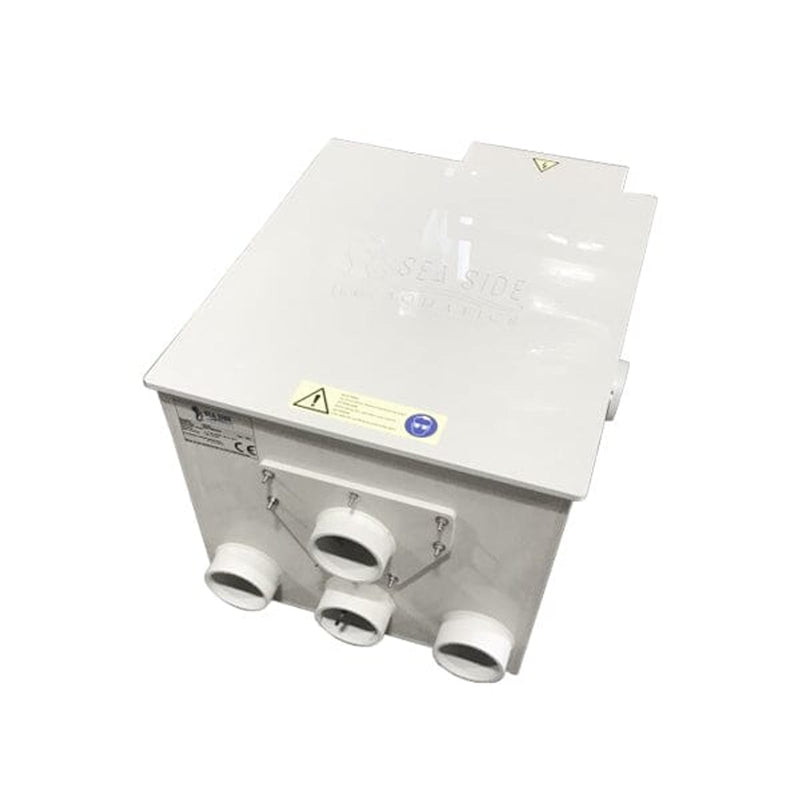

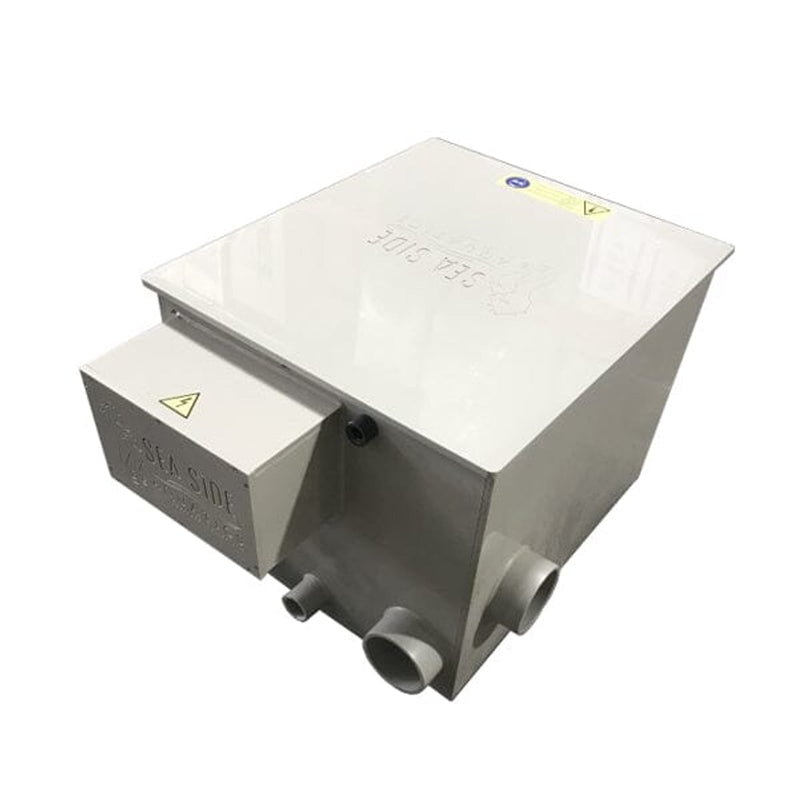

Sea Side Aquatics ECO-20 Rotary Drum Filter (RDF)

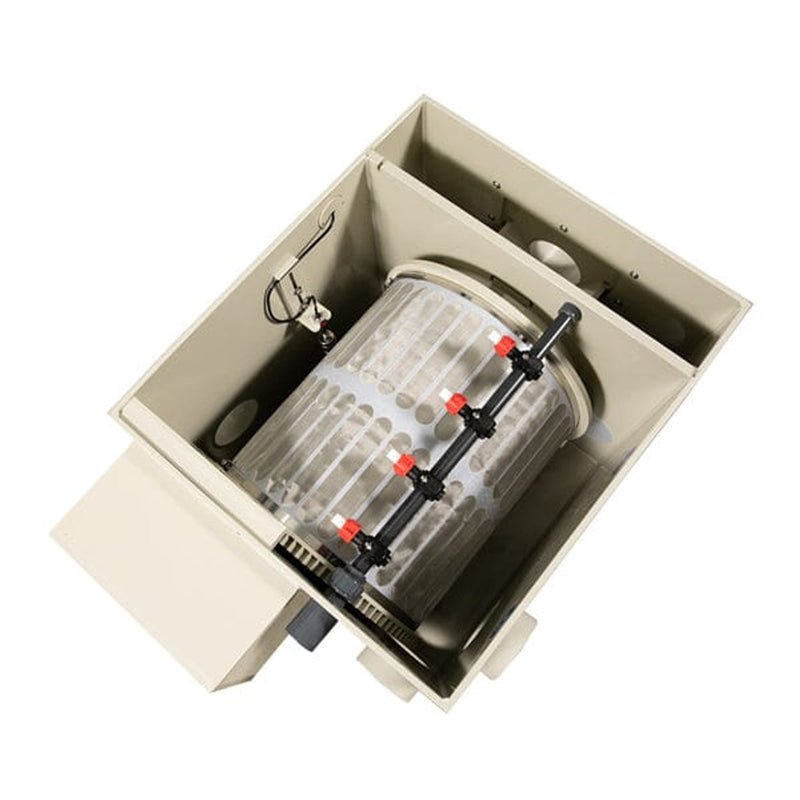

The Sea Side Eco-20 Rotary Drum Filter (RDF) delivers premium, high-quality filtration by effectively removing micro debris and particles as small as 120 microns. Dirty water is filtered through a rotating drum that separates debris and automatically flushes it out, ensuring continuous and clog-free operation. Its robust construction and innovative features make it ideal for medium to large ponds and aquatic systems.

Key Features:

• Max Flow Rate: 5,800 GPH
• Max Pond Size: 11,500 gallons
• Installation Options: Gravity-fed, airlift, or pump-fed systems
• Compact Installation Height: 17 cm

Materials & Components:

• Housing: PP 10 mm, Drum: PP 15 mm
• Stainless Steel 316/304 with durable silicone seals
• Screen Panel: 120-micron stainless steel for micro debris filtration

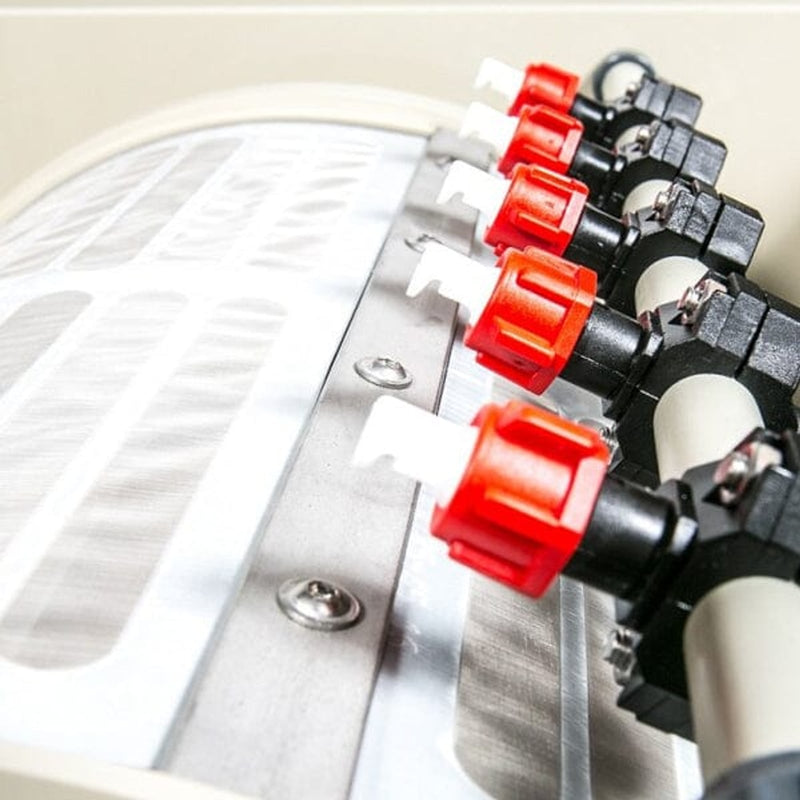

• Spray Bar: High-pressure PVC rated for 40 bar

Specifications:

• Inputs: 3 x 110 mm
• Outputs: 2 x 110 mm (+2 additional outputs for pump-fed systems)
• Waste Drain: 110 mm
• Drum Dimensions: 38 x 40 cm
• Drive Motor: 40 NM with 2.5 rpm

Advanced Features:

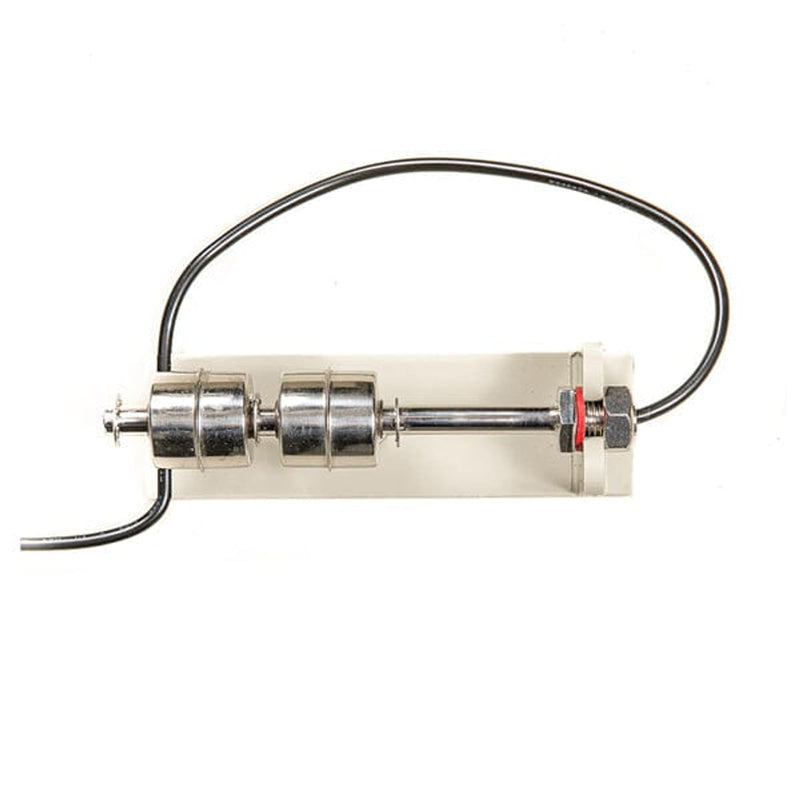

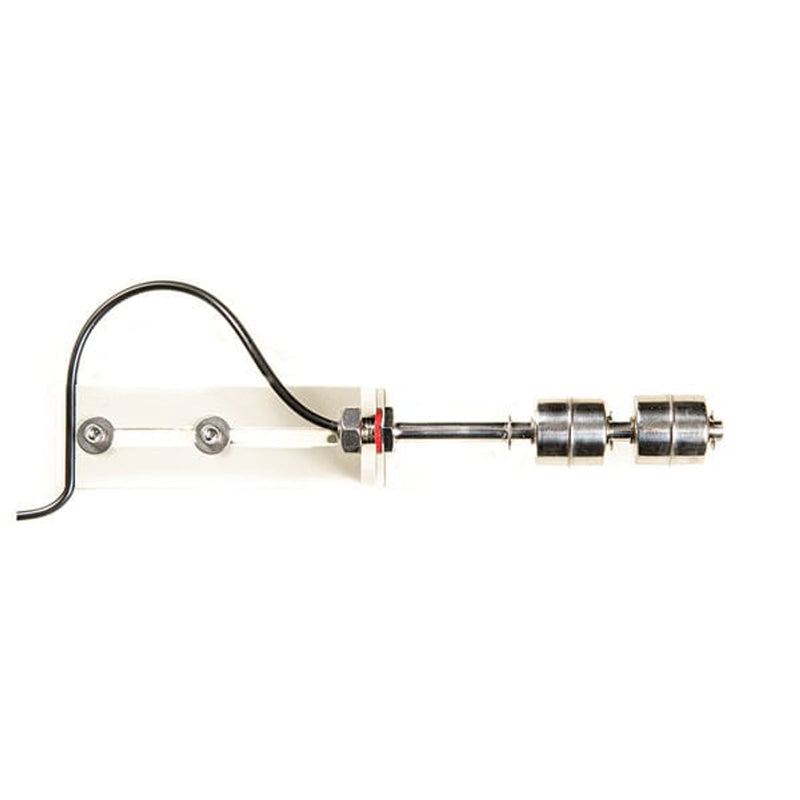

• Float Valve Sensor: Automatically adjusts for water levels
• External Cleaning Pump: Included and required for operation
• Removable Waste Container: Simplifies debris disposal
• Control Box: Provides manual operation for turn/flush cycles
• Adjustable Settings: Rinse level, turn time, and rinse duration

The Sea Side Eco-20 RDF is designed for superior efficiency, reliability, and ease of maintenance, making it an excellent choice for maintaining clear and healthy pond water.
